Algorithm 2&3: Report matches longer than L

Author

Truong Phi

Introduction

Algorithm 3 builds upon the prefix and divergence arrays from Algorithm 2 to efficiently identify all pairs of haplotypes sharing common segments of at least length \(L\). This is a fundamental operation for detecting Identical-By-Descent (IBD) segments within a population.

Description

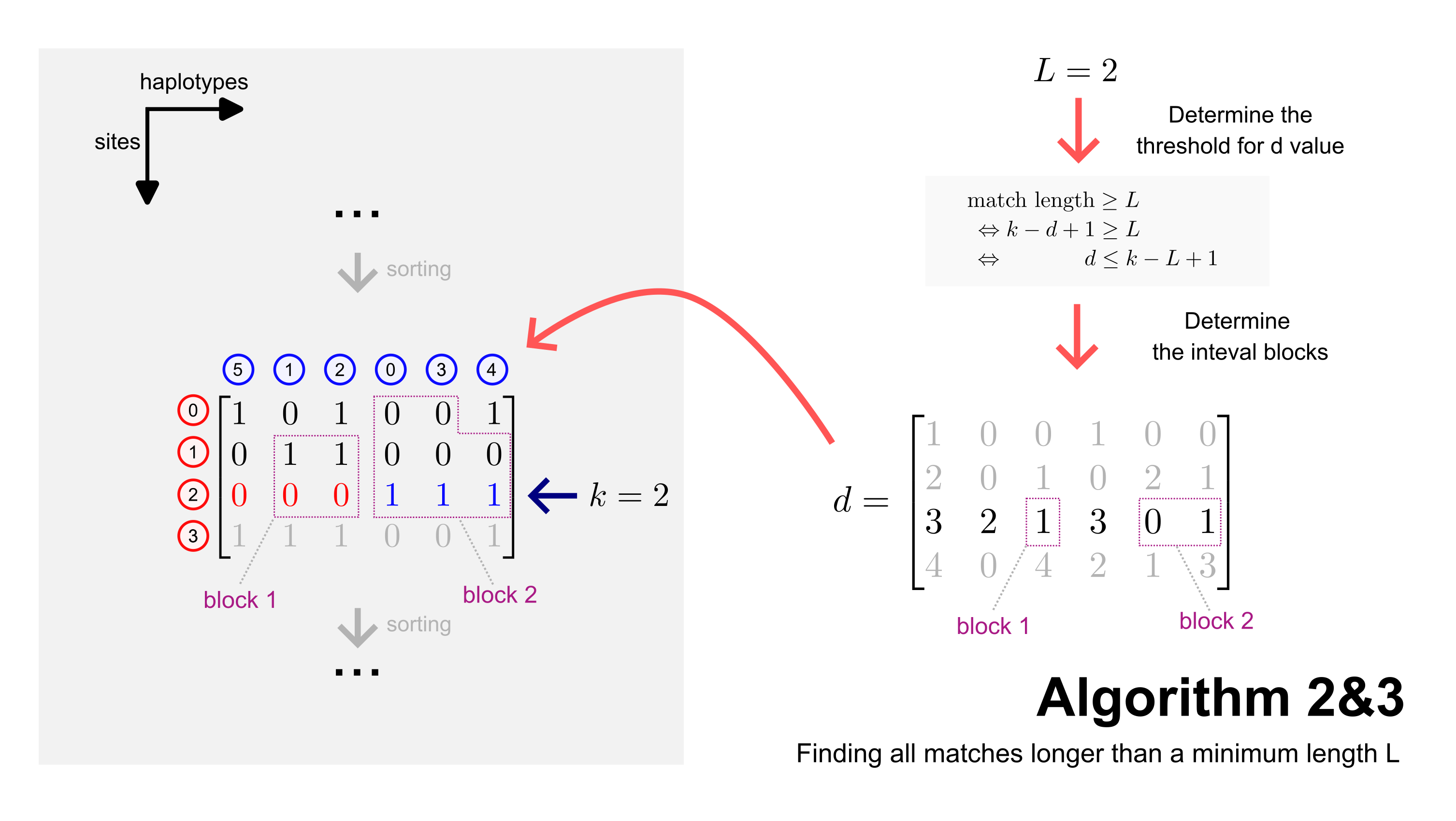

Algorithm 2&3: Finding all matches longer than a minimum length \(L\)

The figure above illustrates how Algorithm 3 leverages the divergence array to identify matches meeting a length threshold \(L\) at site \(k\).

The match length condition

The length of a match between two adjacent haplotypes in the sorted order at site \(k\) is determined by the divergence value \(d[i]\). Specifically, if a match starts at site \(d[i]\) and ends at site \(k\), its length is \(k - d[i] + 1\).

To identify matches of at least length \(L\), we check the condition: \[k - d[i] + 1 \ge L \iff d[i] \le k - L + 1\]

In the example shown in the figure:

  • Current site: \(k = 2\)
  • Minimum length: \(L = 2\)
  • Threshold: \(d[i] \le 2 - 2 + 1 = 1\)

Identifying interval blocks

Algorithm 3 identifies “interval blocks”, contiguous ranges of haplotypes in the sorted prefix array that share common segments. A block \([i, j]\) is formed if \(d[m] \le k - L + 1\) for all \(m \in [i+1, j]\).

  • Block 1: At \(k=2\), the divergence value \(d[2] = 1\) satisfies the threshold (\(1 \le 1\)). This identifies a match between the haplotype at index 2 (Hap 2) and the one at index 1 (Hap 1), spanning from site 1 to \(k\).
  • Block 2: The divergence values \(d[4] = 0\) and \(d[5] = 1\) both satisfy the threshold, identifying a match block across indices 3, 4, and 5 (Haplotypes 0, 3, and 4):
    • Hap 3 matches Hap 0 from site 0 to \(k\).
    • Hap 4 matches Hap 3 from site 1 to \(k\).

Reporting matches

For each identified block, Algorithm 3 reports all constituent haplotype pairs as sharing a match of at least length \(L\). For Block 2, this includes pairs (0, 3), (3, 4), and (0, 4).

Conclusion

  • Algorithm 3’s primary role is to identify match blocks, while Algorithm 2 manages the calculation of divergence values and traceback to original haplotypes.
  • Algorithm 3 is remarkably efficient, identifying all match blocks in \(O(MN)\) time by scanning the haplotypes once at each site.
